Overview

The 'Payment Device' enables the electronic transfer of funds from the user of a service (I.e. a traveler) to the provider of the service. Potential implementations include smart cards that support payment for products and services, including transportation services and general purpose devices like smart phones that support a broad array of services, including electronic payment. In addition to user account information, the payment device may also hold and update associated user information such as personal profiles, preferences, and trip histories.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Light Vehicle OBE	payment device update	Payment Device
Light Vehicle OBE	request for payment	Payment Device
Parking Area Equipment	payment device update	Payment Device
Parking Area Equipment	request for payment	Payment Device
Payment Device	actuate secure payment	Electric Charging Station
Payment Device	actuate secure payment	Light Vehicle OBE
Payment Device	payment device information	Light Vehicle OBE
Payment Device	actuate secure payment	Parking Area Equipment
Payment Device	payment device information	Parking Area Equipment
Payment Device	actuate secure payment	Personal Information Device
Payment Device	actuate secure payment	Transit Vehicle OBE
Payment Device	payment device information	Transit Vehicle OBE
Payment Device	actuate secure payment	Traveler Support Equipment
Payment Device	payment device information	Traveler Support Equipment
Personal Information Device	payment device update	Payment Device
Personal Information Device	request for payment	Payment Device
Transit Vehicle OBE	payment device update	Payment Device
Transit Vehicle OBE	request for payment	Payment Device
Traveler Support Equipment	payment device update	Payment Device
Traveler Support Equipment	request for payment	Payment Device

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 5	Moderate	Moderate	High	Account-based
Class 5	Moderate	Moderate	High	Account-based with all modes
Class 5	Moderate	Moderate	High	Account-based, personal transport and shared use
Class 5	Moderate	Moderate	High	Card-based
Class 5	Moderate	Moderate	High	C-ITS Based Payment
Class 5	Moderate	Moderate	High	Dynamic Ridesharing
Class 5	Moderate	Moderate	High	Electric Charging Stations Management
Class 5	Moderate	Moderate	High	Electronic Toll Collection
Class 5	Moderate	Moderate	High	HOV/HOT Lane Management
Class 5	Moderate	Moderate	High	Integrated Multi-Modal Electronic Payment
Class 5	Moderate	Moderate	High	Local Point of Sale
Class 5	Moderate	Moderate	High	Low Emissions Zone Management
Class 5	Moderate	Moderate	High	Parking Electronic Payment
Class 5	Moderate	Moderate	High	Pay-as-you-go
Class 5	Moderate	Moderate	High	Road Use Charging
Class 5	Moderate	Moderate	High	Shared Use Mobility
Class 5	Moderate	Moderate	High	Shared Use Mobility and Dynamic Ridesharing
Class 5	Moderate	Moderate	High	Transit Fare Collection Management
Class 5	Moderate	Moderate	High	Travel Services Information and Reservation

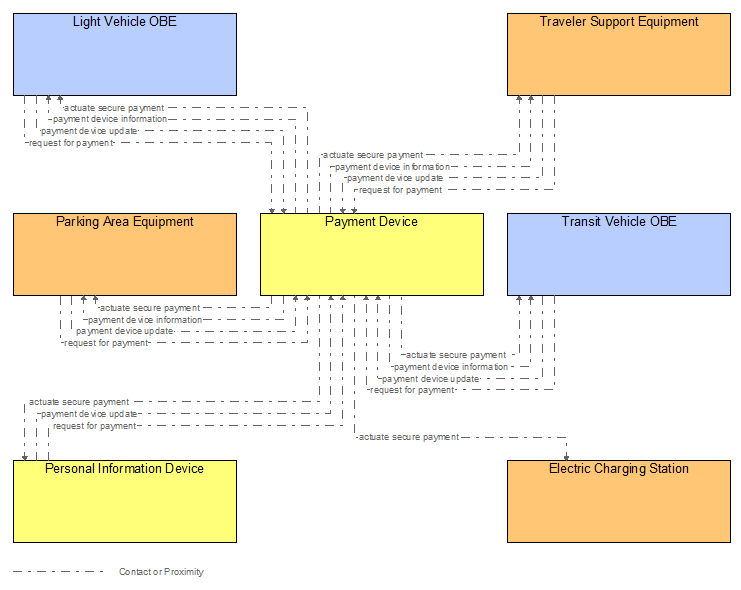

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
