Overview

'Asset Management System' represents the systems that support decision-making for maintenance, upgrade, and operation of physical transportation assets. Asset management integrates and includes the pavement management systems, bridge management systems, and other systems that inventory and manage the highway infrastructure and other transportation-related assets. The types of assets that are inventoried and managed will vary, and may include the maintenance and construction vehicles and equipment as well as "soft" assets such as human resources and software. Asset management systems monitor the condition, performance, and availability of the infrastructure and evaluate and prioritize alternative reconstruction, rehabilitation, and maintenance strategies.

This physical object does not have any functionality defined in ARC-IT, as it exists outside the system functional boundary.

This physical object is included in the following Service Packages:

Triples

Source	Flow	Destination
Archived Data System	archive status	Asset Management System
Asset Management System	asset archive data	Archived Data System
Asset Management System	asset damage assessment	Emergency Management Center
Asset Management System	asset inventory	Maint and Constr Management Center
Asset Management System	asset restrictions	Maint and Constr Management Center
Asset Management System	maintenance and repair needs	Maint and Constr Management Center
Maint and Constr Management Center	asset inventory locations	Asset Management System
Maint and Constr Management Center	asset status update	Asset Management System

Security

This physical object has the following security levels for the associated service packages.

Physical Object Security
Security Class	Confidentiality	Integrity	Availability	Service Package
Class 4	High	High	Moderate	Comprehensive Transportation Data Warehouse
Class 4	High	High	Moderate	ITS Data Warehouse
Class 2	Moderate	Moderate	Moderate	Active RFID Technologies
Class 2	Moderate	Moderate	Moderate	Active RFID Technologies and Automated Vehicle Collection
Class 2	Moderate	Moderate	Moderate	Active RFID Technologies and Remote Control
Class 2	Moderate	Moderate	Moderate	Asset Tracking
Class 2	Moderate	Moderate	Moderate	Asset Tracking Based Infrastructure Warnings
Class 2	Moderate	Moderate	Moderate	Disaster Response and Recovery
Class 2	Moderate	Moderate	Moderate	Infrastructure Monitoring
Class 2	Moderate	Moderate	Low	Maintenance and Construction Activity Coordination
Class 2	Moderate	Moderate	Moderate	Passive RFID Technologies
Class 2	Moderate	Moderate	Moderate	Roadway Maintenance and Construction

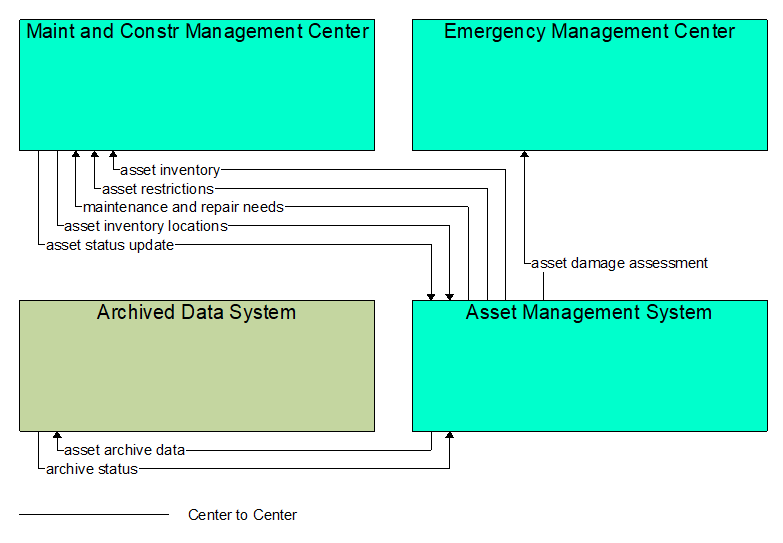

Interfaces Diagram

Standards

Currently, there are no standards associated with the physical object itself though the interfaces may have standards associated with them. For standards related to interfaces, see the specific information flow triple pages.
